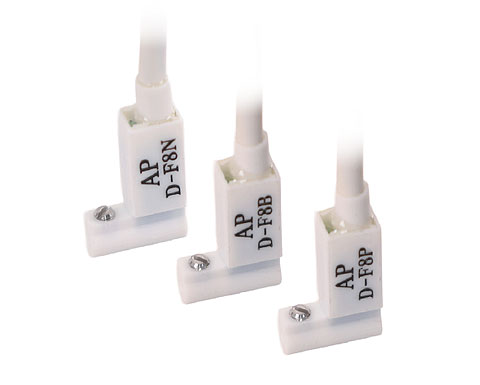

[AP] D-F8□
Lead Wire : Oil resistant vinyl jacket(vw-1, Fire retardand)
Jacket : 2.6Ø mm Grey
Conductor : 0.07 X 30 (coil)
Enclosure Rating : IP67
Shock/Vibration : 30 G
Insulation : Up to 50MΩ at DC500V Between case
Response Time : 1msec
Temperature Range : -10∼70℃
Endurance Voltage : For 1 Min under Ac1500V Between Case
Standard Lead wire is 1 meter long, Longer size are available by order
(AP) D-F8N, D-F8P, D-F8B SPECIFICATION
| Specification | (AP) D-F8N | (AP) D-F8P | (AP) D-F8B |
|---|---|---|---|
| Input Load | IC , PLC, Relay | ||
| Connection | 3 Wire | 2 Wire | |
| Output function | NPN | PNP | 2Wire |
| input Voltage | DC 4.5 ~ 28V | DC 24V (10~28V) | |
| Loading Current | 0~100 mA Max | 5~50 mA Max | |
| int'l Voltage Drop | 0.8V | 4.5V | |
| Leakage Current | 100uA | 1mA | |
| Signal Lamp | Red LED Emitting when S/W on | ||
| ※ NO : Normal Open / NC : Normal Close | |||

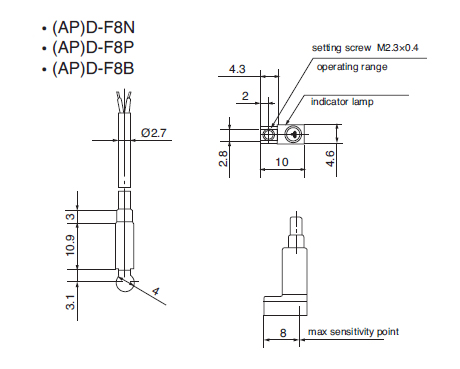

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION

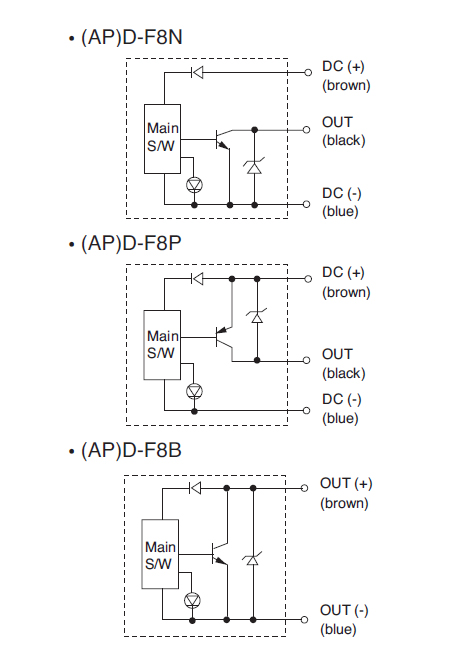

CONNECTION DIAGRAM
