SOLID STATE TYPE

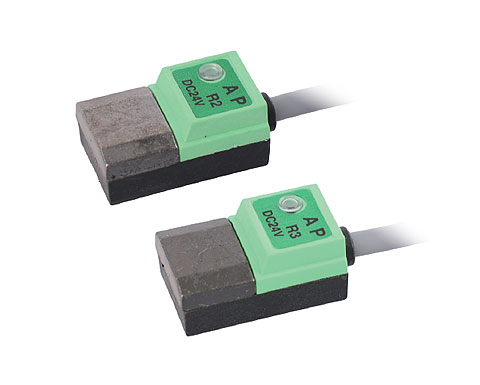

[AP] R2/R3

Lead Wire : Oil resistant vinyl jacket(vw-1, Fire retardand)

Jacket : 4.5mm Grey

Conductor : 0.08 X 60 (coil)

Enclosure Rating : IP67

Shock/Vibration : 30 G

Insulation : Up to 50MΩ at DC500V Between case

Response Time : 1msec

Temperature Range : -10∼ 60℃

Endurance Voltage : For 1 Min under Ac1500V Between Case

Standard Lead wire is 1 meter long, Longer size are available by order

(AP) R3 /R2 SPECIFICATION
Specification (AP) R3 (AP) R2
Input Load IC , PLC, Relay PLC, Relay

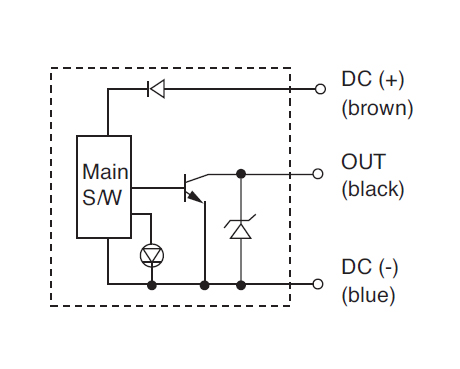

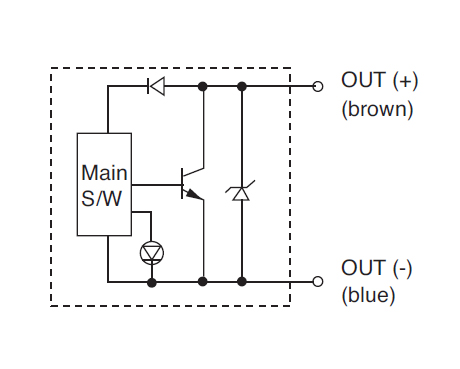

Connection 3 wire 2 wire
Output function NPN, PNP, NO, NC NO, NC
input Voltage DC 4.5 ~ 28V DC 24V (10~28V)
Loading Current 0~100 mA Max 5~50 mA Max
int'l Voltage Drop 0.8V 5V
Leakage Current 100uA 1mA
Signal Lamp Red LED Emitting when S/W on
※ NO : Normal Open / NC : Normal Close

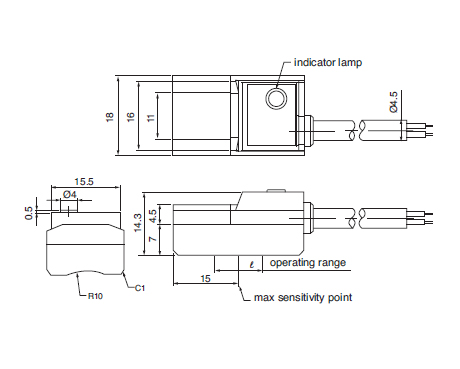

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION

SOLID STATE 2 wire, 3 wire
