[AP] D-F9□ SERIES[AP] D-F8□[AP] D-Y59□/1H[AP] D-□59 SERIES[AP] D-H7□ SERIES[AP] D-F7□□ SERIES[AP] R2/R3

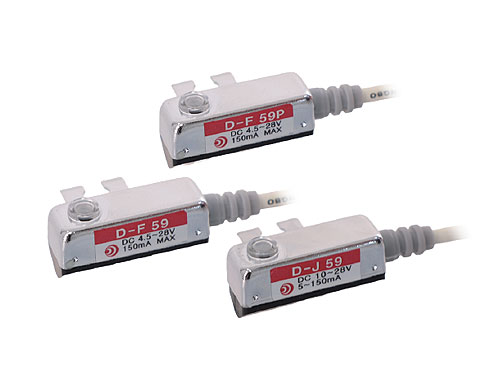

[AP] D-□59 SERIES
Lead Wire : Oil resistant vinyl jacket(vw-1, Fire retardand)
Jacket : 3.5φmm Grey, Black
Conductor : 0.08 X 30 (coil)
Enclosure Rating : IP67
Shock/Vibration : 30 G
Insulation : Up to 50MΩ at DC500V Between case
Response Time : 1msec
Temperature Range : -10∼ 60℃
Endurance Voltage : For 1 Min under Ac1500V Between Case
Standard Lead wire is 1 meter long, Longer size are available by order
(AP) D-F59, D-J59 SPECIFICATION
| Specification | (AP) D-F59 | (AP) D-J59 |
|---|---|---|
| Input Load | IC , PLC, Relay | PLC, Relay |
| Connection | 3 wire | 2 wire |
| Output function | NPN, PNP, NO, NC | NO, NC |
| input Voltage | DC 4.5 ~ 28V | DC 24V (10~28V) |
| Loading Current | 0~100 mA Max | 5~50 mA Max |
| int'l Voltage Drop | Below 0.8V | Below 5V |
| Leakage Current | Below 100uA | Below 1mA |
| Signal Lamp | Red LED Emitting when S/W on | |

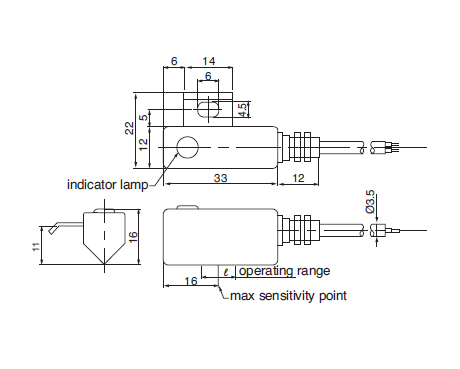

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION

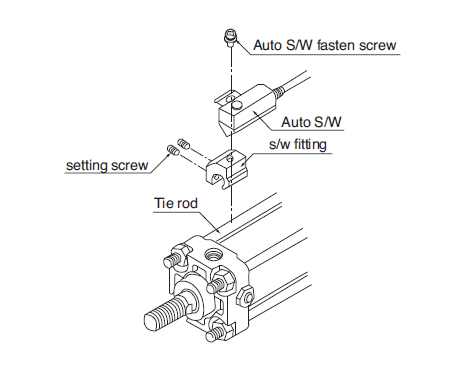

AUTO S/W INSTALL/REMOVE

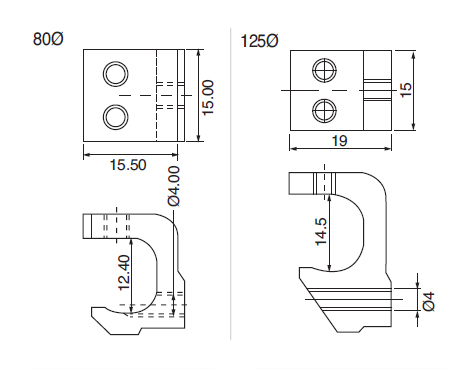

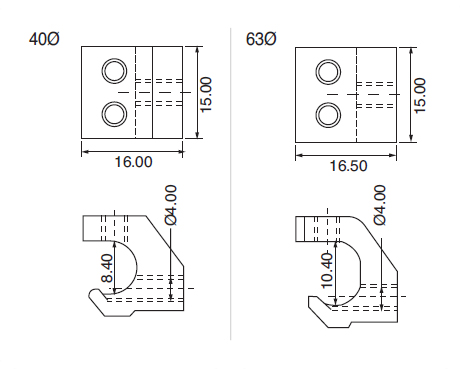

Fitting Bracket on Tie Rod Type(D-A54 Series)

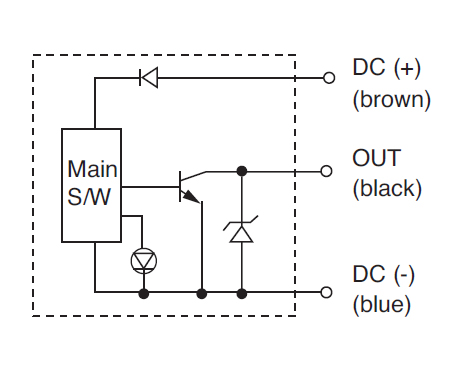

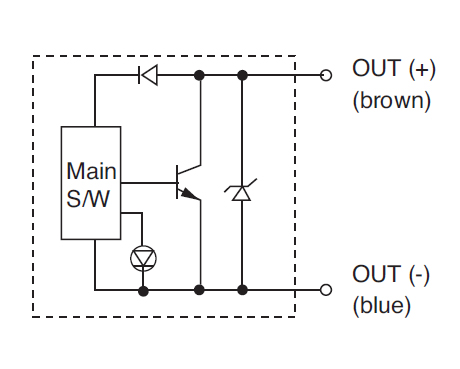

SOLID STATE 2 wire, 3 wire
