DSC wiring method
-
DSC wiring method
-
DSC wiring method
-
DSC wiring method
-
DSC wiring method
DSC wiring method
DSC wiring method

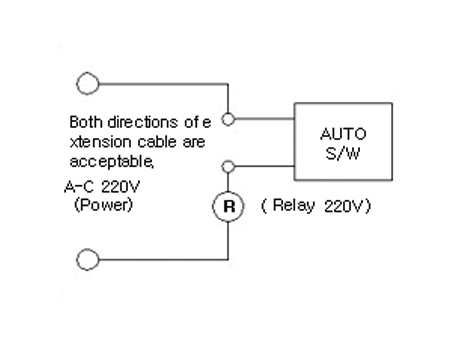

AC 220V

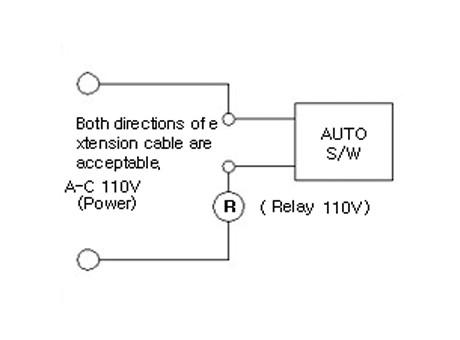

AC 110V
DC24V
PLC Wiring diagram
Generally (-) is used for the input of PLC but sometimes, (+) is used for the input of PLC. At this time, connect the extension line connected to power-) to input terminal and connect the extension line connected to input terminal to (+) terminal.※ Before wiring, please check whether Auto S/W selected is proper for rated current and voltage again. If rated voltage and current are not proper for specification, it may cause damage or malfunction.
