Lead Wire : Oil resistant vinyl jacket(vw-1, Fire retardand)
Jacket : 3.5φmm Grey, Black
Conductor : 0.08 X 60 (coil)
Enclosure Rating : IP67
Shock/Vibration : 30 G
Insulation : Up to 50MΩ at DC500V Between case
Response Time : 1msec
Temperature Range : -10∼ 60℃
Endurance Voltage : For 1 Min under Ac1500V Between Case
Standard Lead wire is 1 meter long, Longer size are available by order

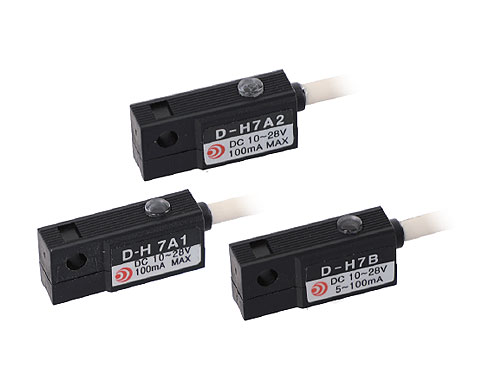

Specification | (AP) D-H7A1 | (AP) D-H7B |
---|---|---|
Input Load | IC , PLC, Relay | PLC, Relay |
Connection | 3 wire | 2 wire |
Output function | NPN, PNP, NO, NC | NO, NC |
input Voltage | DC 4.5 ~ 28V | DC 24V (10~28V) |
Loading Current | 0~100 mA Max | 5~50 mA Max |
int'l Voltage Drop | 0.8V | 5V |
Leakage Current | 100uA | 1mA |
Signal Lamp | Red LED Emitting when S/W on | |
※ NO : Normal Open / NC : Normal Close |

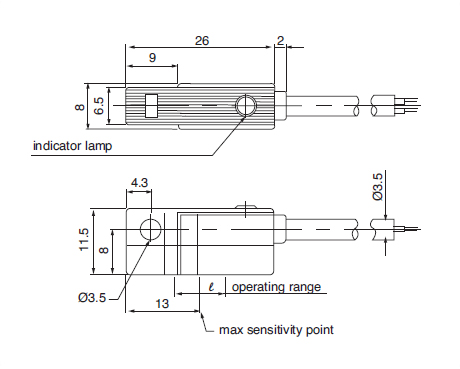

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION

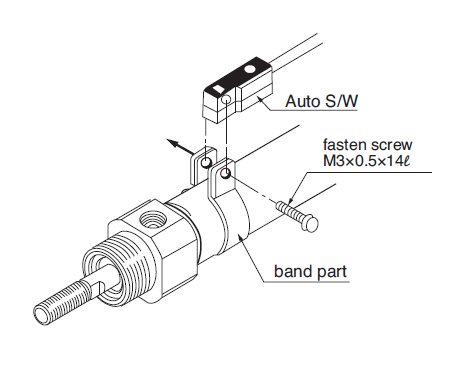

AUTO S/W INSTALL / REMOVE

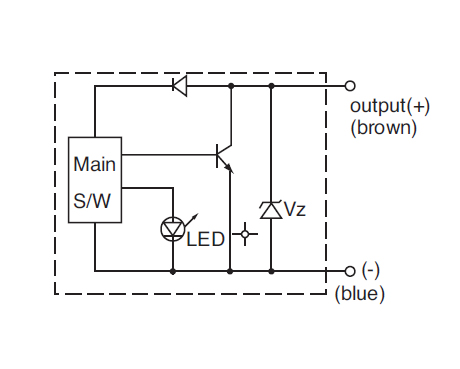

SOLID STATE 2 wire

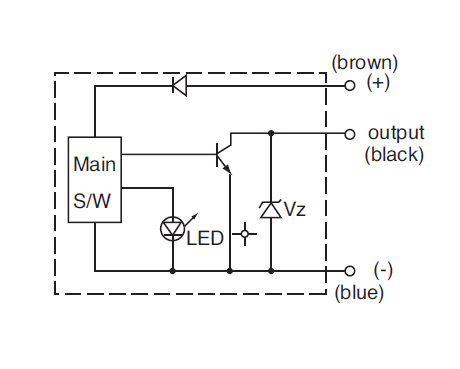

SOLID STATE 3 wire
1. Put Free Band to cylinder and insert Auto S/W between cylinder & Free Band.
2. positioning Auto S/w on the max sensitivity point and pull over the tip end of Free band by plier.
3. Tightening Auto S/W by driving setting screw on the free Band.
4. After tightening, cut off excess parts of Band
5. Applicable cylinder size is 6φ to 40φ for standard size of free Band
▶ Above 40φmm to 80φmm, you are requested a special order.
