REED S/W TYPE

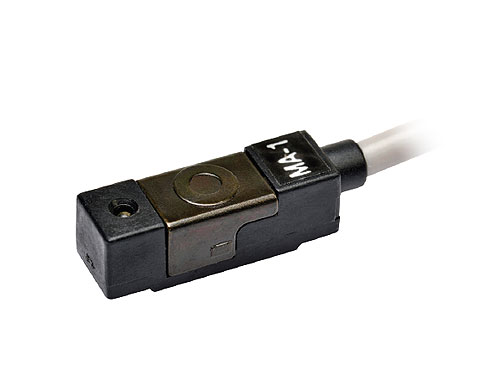

[AP] MA-1

Jacket : 3.5φmm Grey, Black

Conductor : 0.08 X 60 (coil)

Lead Wire : Oil resistant vinyl jacket

Response Time : Less than 1msec

Insulation : Up to 50MΩ at DC500V Between case

Endurance Voltage : For 1 Min under Ac1500V Between Case

Shock/Vibration : 30 G

Leakage Current : None

Temperature Range : -10∼ 60℃

Enclosure Rating : IP-67

Standard Lead wire is 1 meter long, Longer size are available by order

(AP) MA-1 SPECIFICATION
Specification (AP) MA-1
Input Load PLC, Relay
Loading Voltage DC 24V AC 110V
Loading Current 5-50mA 5-25mA
Contact Protect Circuit None
int'l Voltage Drop Below 2.7V
Signal Lamp Red LED Emitting when S/W on

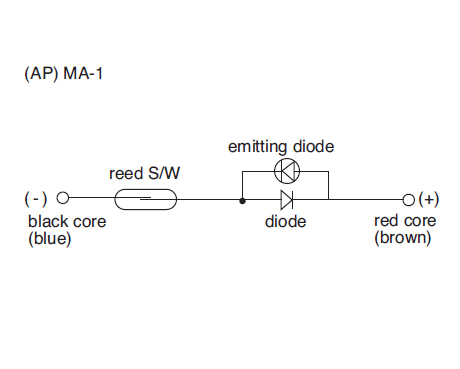

CONNECTION DIAGRAM

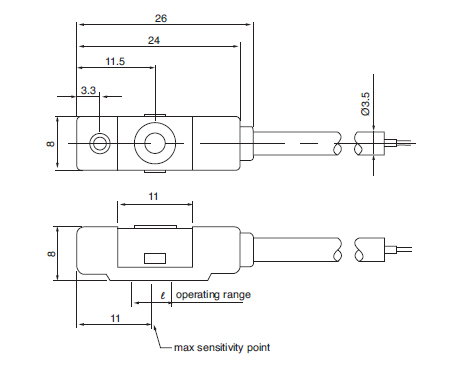

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION
