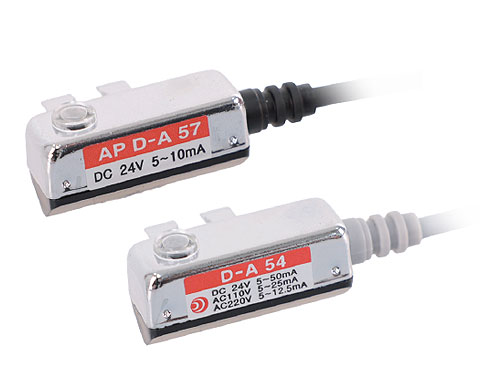

[AP] D-A5□ SERIES
Jacket : 3.5φmm Grey, Black
Conductor : 0.08 X 60 (coil)
Lead Wire : Oil resistant vinyl jacket
Response Time : Less than 1msec
Insulation : Up to 50MΩ at DC500V Between case
Endurance Voltage : For 1 Min under Ac1500V Between Case
Shock/Vibration : 30 G
Leakage Current : None
Temperature Range : -10∼ 60℃
Enclosure Rating : IP-67
Standard Lead wire is 1 meter long, Longer size are available by order
Product Video
(AP) D-A, 54,53 SPECIFICATION
| Specification | (AP) D-A 54 | (AP) D-A 57 | ||
|---|---|---|---|---|
| Input Load | PLC, Relay | PLC, Relay | ||
| Loading Voltage | DC 24V | AC 110V | AC 220V | AC 110V |
| Loading Current | 5-50mA | 5-25mA | 5-12.5mA | 5-50mA |
| Contact Protect Circuit | Entrails | None | ||
| int'l Voltage Drop | Below 2.7V | |||
| Signal Lamp | Red LED Emitting When S/W on | |||
(AP) D-A, 64,67 SPECIFICATION
| Specification | (AP) D-A 54 | (AP) D-A 57 | ||||
|---|---|---|---|---|---|---|
| Input Load | PLC, Relay | PLC, Relay | ||||
| Loading Voltage | DC 24V | AC 110V | AC 220V | DC 24V | AC 110V | AC 220V |
| Loading Current | 50mA | 5-25mA | 12.5mA | 5-50 mA | 50mA | 25mA |
| Contact Protect Circuit | None | |||||
| int'l Voltage Drop | 25Ω | 1Ω | ||||
| Signal Lamp | None | |||||

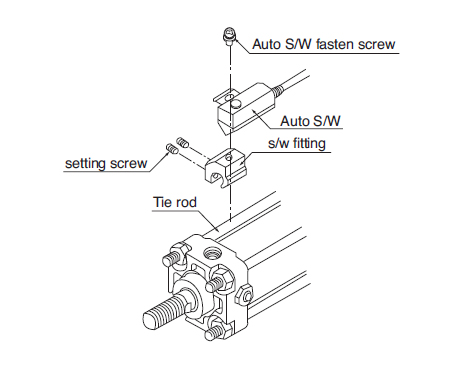

AUTO S/W INSTALL/REMOVE

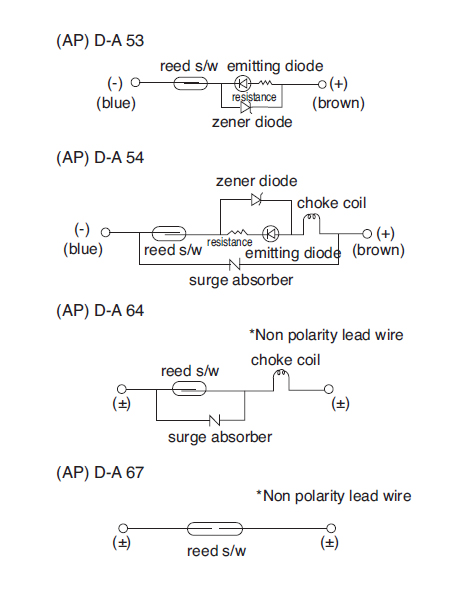

CONNECTION DIAGRAM

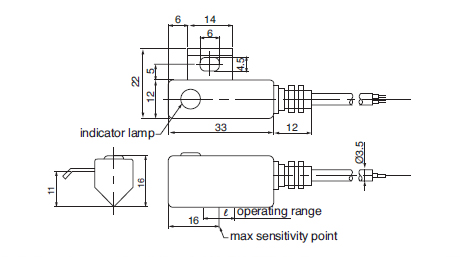

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION

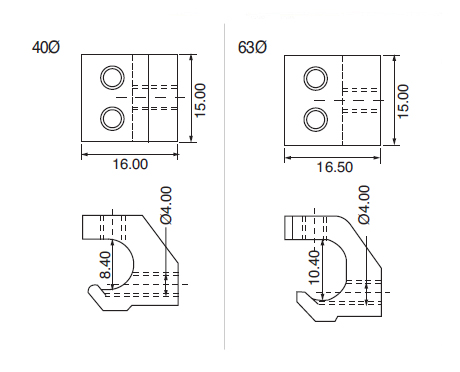

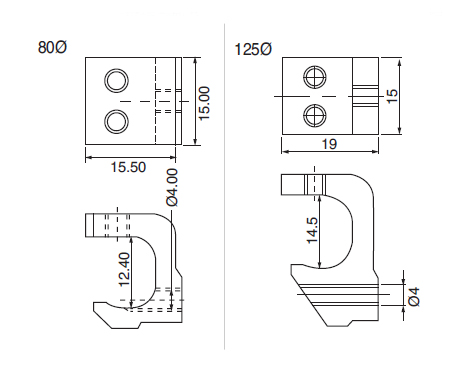

Fitting Bracket on Tie Rod Type (D-A54 Series)
