Jacket : 4.5mm Grey
Conductor : 0.08 X 60 (coil)
Lead Wire : Oil resistant vinyl jacket
Response Time : Less than 1msec
Insulation : Up to 50MΩ at DC500V Between case
Endurance Voltage : For 1 Min under Ac1500V Between Case
Shock/Vibration : 30 G
Leakage Current : None
Temperature Range : -10∼ 60℃
Enclosure Rating : IP-67
Standard Lead wire is 1 meter long, Longer size are available by order
Specification | (AP) RO | ||
---|---|---|---|
Input Load | PLC, Relay | ||
Loading Voltage | DC 24V | AC 110V | AC 220V |
Loading Current | 5-50mA | 5-25mA | 5-12.5mA |
Contact Protect Circuit | Builtede in | ||
int'l Voltage Drop | Below 2.7V | ||
Signal Lamp | Red LED Emitting when S/W on |

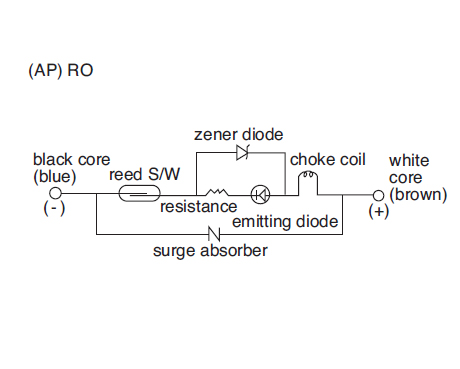

CONNECTION DIAGRAM

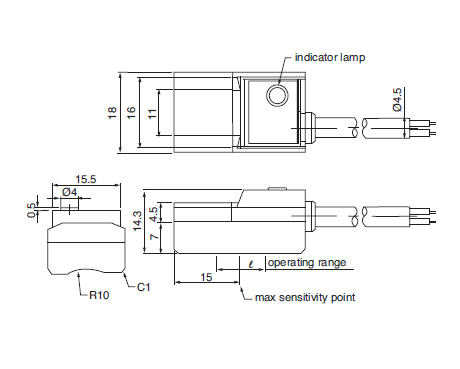

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION
