REED S/W TYPE

[AP] D-A93[AP] D-A7□ SERIES[AP] D-C7□ SERIES[AP] D-A5□ SERIES[AP] W13H[AP] D-5□ SERIES[AP] RO[AP] SO[AP] APC[AP] MA-1

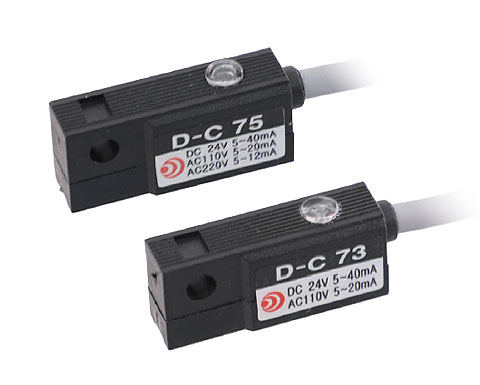

[AP] D-C7□ SERIES

Jacket : 3.5φmm Grey, Black

Conductor : 0.08 X 60 (coil)

Lead Wire : Oil resistant vinyl jacket

Response Time : Less than 1msec

Insulation : Up to 50MΩ at DC500V Between case

Endurance Voltage : For 1 Min under Ac1500V Between Case

Shock/Vibration : 30 G

Leakage Current : None

Temperature Range : -10∼ 60℃

Enclosure Rating : IP-67

Standard Lead wire is 1 meter long, Longer size are available by order

(AP) D-C 73, 75 SPECIFICATION
Specification (AP) D-C 73 (AP) D-C 75
Input Load PLC, Relay PLC, Relay
Loading Voltage DC 24V AC 110V DC 24V AC 110V AC 220V
Loading Current 5-40mA 5-20mA 5-40mA 5-20mA 5-12mA
Contact Protect Circuit None
int'l Voltage Drop Below 2.7V
Signal Lamp Red LED Emitting When S/W on

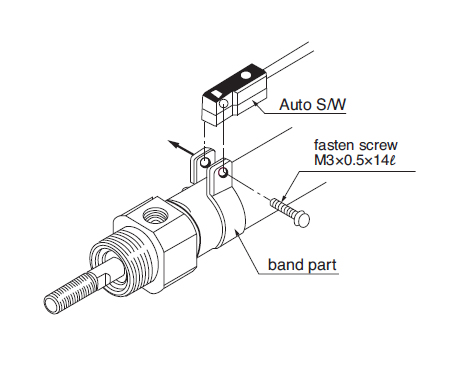

AUTO S/W INSTALL / REMOVE

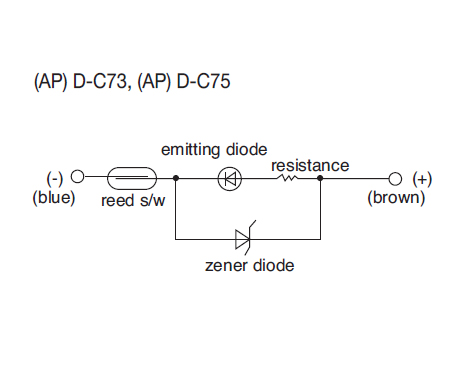

CONNECTION DIAGRAM

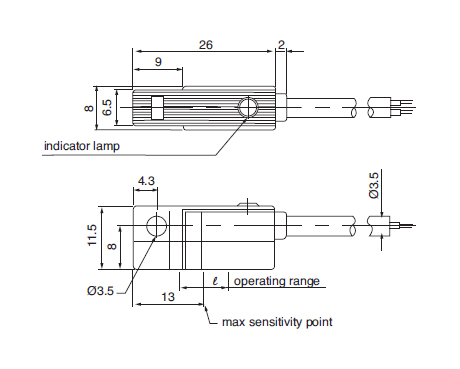

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION

FREE BAND
※It can simply apply for fitting Auto S/W on the cylinder in the range of 6Φ ~80Φ
- Pat No.0243955

1. Put Free Band to cylinder and insert Auto S/W between cylinder & Free Band.

2. positioning Auto S/w on the max sensitivity point and pull over the tip end of Free band by plier.

3. Tightening Auto S/W by driving setting screw on the free Band.

4. After tightening, cut off excess parts of Band

5. Applicable cylinder size is 6φ to 40φ for standard size of free Band

▶ Above 40φmm to 80φmm, you are requested a special order.
