[AP] D-A93[AP] D-A7□ SERIES[AP] D-C7□ SERIES[AP] D-A5□ SERIES[AP] W13H[AP] D-5□ SERIES[AP] RO[AP] SO[AP] APC[AP] MA-1
[AP] D-A7□ SERIES
Jacket : 3.5φmm Grey, Black
Conductor : 0.08 X 60 (coil)
Lead Wire : Oil resistant vinyl jacket
Response Time : Less than 1msec
Insulation : Up to 50MΩ at DC500V Between case
Endurance Voltage : For 1 Min under Ac1500V Between Case
Shock/Vibration : 30 G
Leakage Current : None
Temperature Range : -10∼ 60℃
Enclosure Rating : IP-67
Standard Lead wire is 1 meter long, Longer size are available by order

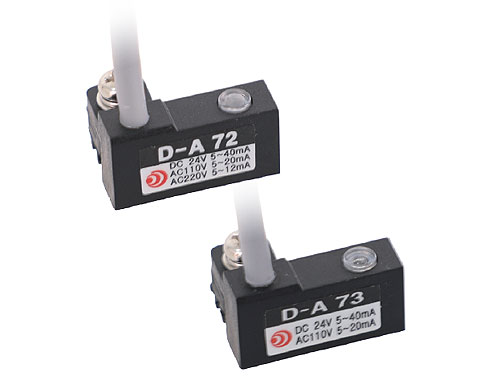

(AP) D-A 73, 72 SPECIFICATION
| Specification | (AP) D-A 73 | (AP) D-A 72 | |||
|---|---|---|---|---|---|
| Input Load | PLC, Relay | PLC, Relay | |||
| Loading Voltage | DC 24V | AC 110V | DC 24V | AC 110V | AC 220V |
| Loading Current | 5-40mA | 5-20mA | 5-40mA | 5-20mA | 5-12mA |
| Contact Protect Circuit | None | ||||
| int'l Voltage Drop | Below 2.7V | ||||
| Signal Lamp | Red LED Emitting When S/W on | ||||

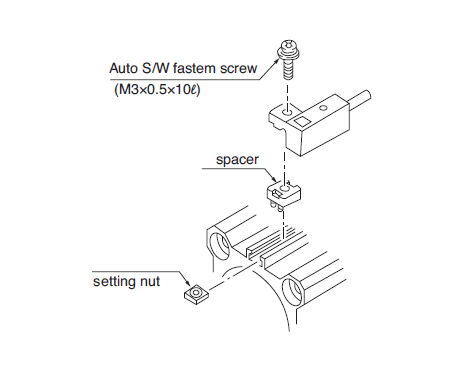

AUTO S/W INSTALL/REMOVE

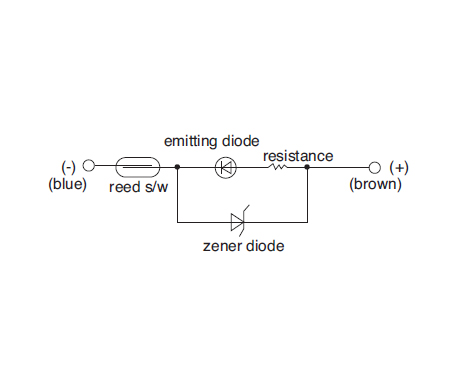

CONNECTION DIAGRAM

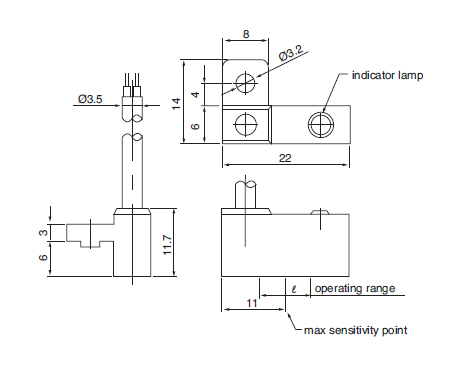

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION
